Chartplotter Installation Accessory Kit Guide
Share
A chartplotter is only as useful as the installation behind it. A loose bracket, undersized power cable, unprotected connection, or poorly sealed mounting hole can turn a valuable navigation upgrade into a source of unreliable readings and water damage. The right chartplotter installation accessory kit brings the essential fitting, wiring, and protection components together so the display is secure, powered correctly, and ready for real time on the water.
For first-time boat owners, the number of small parts involved can be surprising. Experienced skippers often know the opposite problem: a previous owner’s shortcut installation that needs to be undone before new electronics can be trusted. A properly specified kit takes the guesswork out of those details and helps you spend less time sourcing individual pieces.
What a Chartplotter Installation Accessory Kit Should Cover
A useful installation kit is more than a bag of screws. It should support the complete path from mounting the display to connecting it safely to the boat’s electrical system and protecting every point where water, vibration, and movement could create a problem.

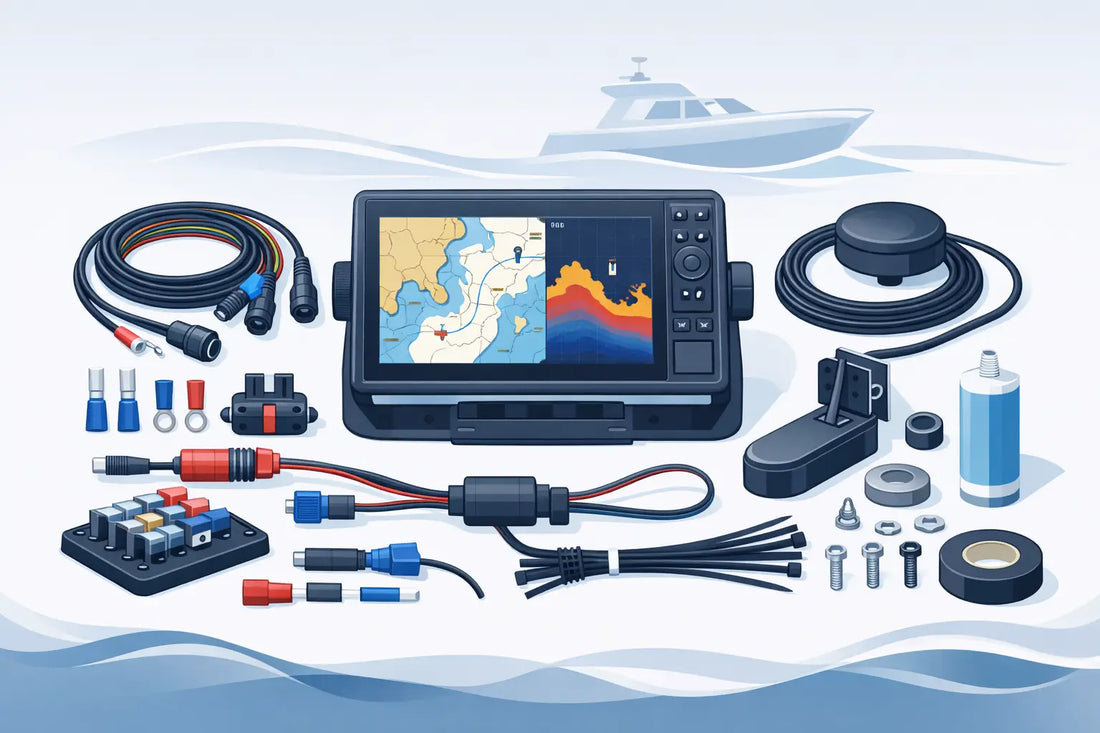

The exact contents depend on the chartplotter model and the boat, but most installations need a suitable mount or dash-fitting hardware, marine-grade power cable and fuse protection, connectors or terminals, cable-management items, and sealing hardware. If the chartplotter will connect to a transducer, VHF radio, AIS receiver, radar, or other onboard equipment, the kit may also need network connectors and routing protection for additional cables.
Compatibility matters more than quantity. A kit with every imaginable fitting is not necessarily helpful if it includes the wrong plug style, an unsuitable bracket, or cable that is too short for your helm layout. The best approach is to start with the chartplotter’s installation instructions, then match the accessories to the boat’s power supply, console construction, and planned electronics network.
Start With the Mounting Location
Before choosing accessories, decide where the chartplotter will live. The screen needs to be easy to read while seated or standing at the helm, without blocking gauges, sightlines, or access to switches. It should also remain usable in bright sun and be positioned where the operator can reach the controls without leaning away from the wheel or throttle.
A bracket mount is often the practical choice on smaller center consoles, open boats, and boats where the electronics may be removed for storage. It allows the screen angle to be adjusted and usually keeps installation straightforward. The trade-off is that the unit sits proud of the dash and requires enough clearance behind or below it for the cables to bend naturally.
Flush mounting gives a neater, more integrated look and can protect the unit from accidental knocks. It requires a precise cutout, enough flat dash area, and clear space behind the panel for connectors and cable routing. On a thin console panel, reinforcement may be needed so the display does not flex in rough water.
Whichever option you choose, use stainless mounting hardware suited to the material beneath it. A mounting surface can look solid while hiding thin fiberglass, plywood backing, or an inaccessible void. Check both sides of the panel before drilling. This small step prevents puncturing wiring, fuel lines, control cables, or areas that cannot accept a nut and washer.
Seal Every Hole Properly
Water finds its way into poorly protected holes, particularly around exposed consoles and windshields. Any fastener or cable passing through fiberglass, aluminum, or a dash panel should be sealed with an appropriate marine sealant or gasket. The goal is to prevent moisture entering the structure, not to permanently glue the chartplotter in place.
Avoid filling electrical connectors with sealant. Connectors need clean, dry contact surfaces and should remain serviceable. Use purpose-made cable glands, grommets, or deck seals where cables pass through a panel. They protect cable jackets from chafing and keep spray from following the cable into the console.
Give the Chartplotter Clean, Protected Power
A chartplotter needs a dependable power supply. Connecting it to an existing accessory wire because it is nearby can cause voltage drop, screen resets, electrical noise, or a blown circuit when multiple devices are running. Run the unit from a properly protected circuit, using the wire size and fuse rating specified by the manufacturer.
The fuse should be located close to the power source, not at the far end of the cable behind the display. This protects the length of wire between the battery or distribution panel and the chartplotter. If a fault develops along that run, the fuse can interrupt the current before the cable overheats.
Marine-grade tinned copper wire is worth using, especially in damp bilges, open consoles, and saltwater environments. Household wire and basic automotive connectors may work at first, but corrosion can quickly create intermittent faults that are difficult to trace. Heat-shrink crimp terminals, installed with the correct crimping tool, create a more dependable connection and add strain relief where the wire meets the terminal.
Keep the chartplotter’s power cable away from high-current cables where possible. Battery cables, trim-pump wiring, and some engine harnesses can introduce interference. If cables must cross, cross them at right angles rather than running them side by side for a long distance.
Plan Connections Before Running Cables
Modern chartplotters often become the center of a boat’s navigation setup. They may share GPS position, depth, engine information, AIS targets, weather data, and waypoint information with other equipment. That is useful only when each connection is planned correctly.
Start by listing what the chartplotter needs to communicate with. A basic setup may only need power and a transducer connection. A more complete setup could include a VHF radio with DSC, an AIS receiver, a heading sensor, digital engine gauges, or a second display. Check which network standard each device uses and whether an adapter, backbone cable, terminator, or power tee is required.
Do not assume that two plugs that look similar are compatible. Different brands, product generations, and network types may use different connectors and communication standards. It depends on the equipment already on board, which is why a professionally matched electronics bundle can save time and avoid ordering parts twice.
Leave a small service loop behind the display and at key connection points. This gives enough slack to remove the unit for inspection or replacement without pulling on terminals. Do not coil excessive cable tightly into a bundle, as this can trap heat, create clutter, and make fault-finding harder later.
Secure and Label the Wiring
Cables should be supported at regular intervals with clips, ties, or mounts that will not cut into the jacket. Keep them clear of steering gear, throttle controls, sharp fiberglass edges, and any area where gear stored in the console could snag them.
Labels are a simple addition that pays off when the boat is winterized, serviced, or upgraded. Mark both ends of power, network, transducer, and antenna cables. A future repair becomes much quicker when you can identify a cable without tracing it from the helm to the stern.
Common Shortcuts That Cause Problems
The most frustrating chartplotter faults usually come from installation details rather than the display itself. A few shortcuts are especially likely to cause trouble:
- Powering the unit from an overloaded accessory circuit instead of a correctly fused supply.
- Leaving connectors unsupported so vibration works them loose over time.
- Routing cables through bare holes without grommets or glands.
- Using non-marine wire or unsealed terminals in a damp area.
- Cutting every cable to the shortest possible length, leaving no room for service.
- Mounting the screen where it cannot be seen clearly while operating the boat.
A Better Way to Buy Installation Parts
Buying a chartplotter and then searching for every supporting component separately can leave gaps. You may have the display but not the right fuse holder, the correct mount but no cable gland, or network devices without the pieces needed to connect them. That delay is especially unwelcome when the boat is being prepared for a launch date or a planned trip.
At Boatsmart Equip, the focus is on practical packages that bring compatible essentials together. For chartplotter installations, that means thinking beyond the screen itself and considering the parts that make it dependable in service: safe power protection, secure mounting, sensible cable routing, and appropriate connections to the rest of the boat.
If there is any uncertainty, measure the available dash space, cable run, and distance to the power source before ordering. Take note of existing electronics, battery voltage, and whether the boat is kept on a trailer, at a dock, or in the water. A few careful checks before installation help ensure the chartplotter is ready when you need it most - not just when the boat is tied up at home.
